UHF RFID Tamper Windshield Labels Printed with TID on top
$0.1-0.5(depends on the chip and request)
UHF RFID Tamper Windshield Labels Printed with TID on top
UHF RFID Tamper Windshield Labels Printed with TID on top
UHF RFID Tamper Windshield Labels
RFID Tamper Windshield Labels offers a more accurate and secure way to allow access into various locations like a gated community, company/corporate secured parking or even a car wash. The inlay utilizes passive technology and is encapsulated between thin layers of polypropylene adding human readable printing to one side and a windshield-compatible adhesive to the other.
Features:
1. Specialized inlays read well through windshield glass.
2. Read ranges of 30+ feet
3. Customized printing
4. Destructible option prevents unauthorized vehicles from using tags transferred from authorized vehicles.

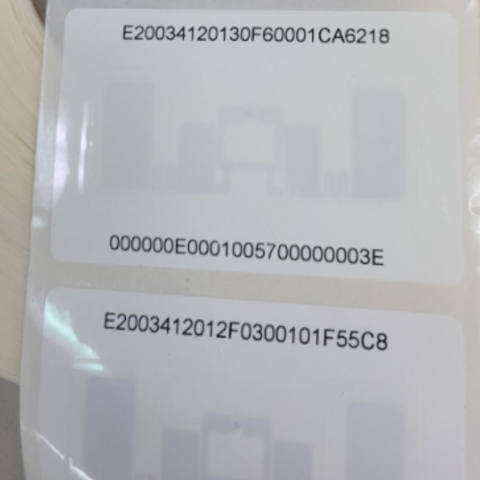

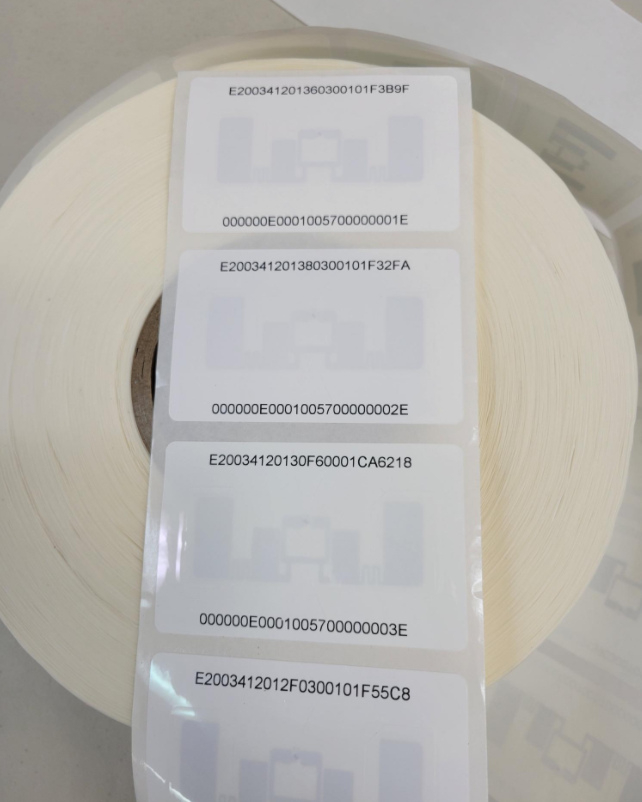

Tamper Windshield Labels printed with TID on top, EPC on the bottom 000000E0001006100000001E 000000E0001006100001000E and programmed with these EPC values.
Product Specification:
| Size | 100*30mm, 100*50mm, 100*25mm, 86*54mm or customized |
| Face Stock or Housing | Printable PET/Printable paper |
| Installation | Adhesive |
| Antenna Type | Aluminum Antenna |
| Technology | Microstrip Flat Style |
| Backing Liner | paper Liner |
| Characters | Tamper Proof |
| Delivery Packing | Supply in roll with 1000-3000PCS/Roll |
| Chip Model | Alien H3/Alien H9/U code 9/Alien H4 etc. |
| Protocol | ISO18000-6C GEN2 |
| Operating Frequency | 860-960MHz |
| Memory | TID/UID 64bit |
| EPC 96bit/496bit | |
| User 512bit/688bit | |
| Reserve 32bit access & 32bit kill | |
| Applicable Surface | Air-free, Glass |
| Custom Options | Color printing(Embossing or laser-engraving) with barcode or text & pre-encoding |
| Data EEPROM Retention | 10 years |
| ESD Limited Voltage | 2KV |
| Storage Temperature | -10°C – 35°C |
| Operating Temperature | -25℃ – 75°C |
| Relative Humidity | 10%-95%(Variant Performance) |
Application:
